Grid5000:Network: Difference between revisions
No edit summary |
No edit summary |
||
| Line 1: | Line 1: | ||
__NOEDITSECTION__ | __NOEDITSECTION__ | ||
=Grid'5000 backbone network infrastructure= | =Grid'5000 backbone network infrastructure= | ||
[[Image:Logo RENATER.png|right]] | [[Image:Logo RENATER.png|150px|left]] | ||
[[Image:renater4-4.jpg|250px|right|thumbnail|Renater's POPs]] | |||
Grid'5000 backbone network infrastructure is provided by '''[http://www.renater.fr RENATER]''' | Grid'5000 backbone network infrastructure is provided by '''[http://www.renater.fr RENATER]''' | ||
'''[http://www.renater.fr RENATER]''' is the French National Telecommunication Network for Technology, Education and Research. More information can be found on the web site: http://www.renater.fr | '''[http://www.renater.fr RENATER]''' is the French National Telecommunication Network for Technology, Education and Research. More information can be found on the web site: http://www.renater.fr | ||
'''[http://www.renater.fr RENATER]''' offers about 30 POPs (Points Of Presence) in France, at least one POP for each region, which metropolitan and regional networks are connected on. | '''[http://www.renater.fr RENATER]''' offers about 30 POPs (Points Of Presence) in France, at least one POP for each region, which metropolitan and regional networks are connected on. | ||
| Line 14: | Line 15: | ||
The "standard" architecture is based on '''2,5Gbit/s''' leased lines and provides IP transit connectivity, interconnection with GEANT-2 (http://www.geant2.net/), overseas territories and the SFINX (Global Internet exchange). | The "standard" architecture is based on '''2,5Gbit/s''' leased lines and provides IP transit connectivity, interconnection with GEANT-2 (http://www.geant2.net/), overseas territories and the SFINX (Global Internet exchange). | ||
(Grid'5000 users, for more information please consult [[Network_interlink#Renater4]]) | (Grid'5000 users, for more information please consult [[Network_interlink#Renater4]]) | ||
| Line 20: | Line 20: | ||
===Initial design=== | ===Initial design=== | ||
The initial design of Grid'5000 sites interconnection has been adressed within the RENATER backbone using a Ethernet Over MPLS (EoMPLS) solution. It is a full mesh topology based on MPLS tunnels (LSPs) established between the RENATER POPS on which are connected the Grid'5000 sites. In practice sites are interconnected through 1Gbit/s VLANs. | The initial design of Grid'5000 sites interconnection has been adressed within the RENATER backbone using a Ethernet Over MPLS (EoMPLS) solution. It is a full mesh topology based on MPLS tunnels (LSPs) established between the RENATER POPS on which are connected the Grid'5000 sites. In practice sites are interconnected through 1Gbit/s VLANs. | ||
[[Image:renater4-fbn-1.jpg|250px|right|thumbnail|Renater's Dark Fiber infrastructure, current state along with the maximun number of lambdas that can be allocated on each link ]] | |||
===Dark fibre=== | ===Dark fibre=== | ||
RENATER-4 also introduced a dark fibre infrastructure allowing to allocate dedicated 10Gbit/s "lambdas" for specific research projects. It also provides interconnection with GEANT-2 (see picture above), with increased capacity compared to GEANT-1 and dedicated interconnection for projects. | RENATER-4 also introduced a dark fibre infrastructure allowing to allocate dedicated 10Gbit/s "lambdas" for specific research projects. It also provides interconnection with GEANT-2 (see picture above), with increased capacity compared to GEANT-1 and dedicated interconnection for projects. | ||
This new infrastructure is still under deployment (April 2006) and Grid'5000 sites are connected to it, one by one, as soon as it becomes available on the local POP. With the dark fibre infrastructures, Grid'5000 sites will see each others inside the same VLAN (10Gbit/s). | This new infrastructure is still under deployment (April 2006) and Grid'5000 sites are connected to it, one by one, as soon as it becomes available on the local POP. With the dark fibre infrastructures, Grid'5000 sites will see each others inside the same VLAN (10Gbit/s). | ||
====Sites connection==== | ====Sites connection==== | ||
Inside the RENATER POPs, Grid'5000 sites are directly connected to the switches, by-passing the routers which are used for "standard" IP traffic (and Grid'500 sites that are still using the EoMPLS initial solution). | Inside the RENATER POPs, Grid'5000 sites are directly connected to the switches, by-passing the routers which are used for "standard" IP traffic (and Grid'500 sites that are still using the EoMPLS initial solution). | ||
[[Image:renater4-pop-s.jpg|center|500px]] | |||
===Metrology=== | |||
You can find the metrology done on Grid5000 by '''Renater''' on the [[Network_interlink#Renater4]] section. | You can find the metrology done on Grid5000 by '''Renater''' on the [[Network_interlink#Renater4]] section. | ||
Revision as of 15:18, 29 March 2007
Grid'5000 backbone network infrastructure
Grid'5000 backbone network infrastructure is provided by RENATER
RENATER is the French National Telecommunication Network for Technology, Education and Research. More information can be found on the web site: http://www.renater.fr
RENATER offers about 30 POPs (Points Of Presence) in France, at least one POP for each region, which metropolitan and regional networks are connected on.
More than 600 sites (Universities, Research Centers, ..) are interconnected through RENATER.
The actual phase of the network is RENATER-4, the deployment has been completed by November 2005.
The "standard" architecture is based on 2,5Gbit/s leased lines and provides IP transit connectivity, interconnection with GEANT-2 (http://www.geant2.net/), overseas territories and the SFINX (Global Internet exchange).
(Grid'5000 users, for more information please consult Network_interlink#Renater4)
Grid5000 project
Initial design
The initial design of Grid'5000 sites interconnection has been adressed within the RENATER backbone using a Ethernet Over MPLS (EoMPLS) solution. It is a full mesh topology based on MPLS tunnels (LSPs) established between the RENATER POPS on which are connected the Grid'5000 sites. In practice sites are interconnected through 1Gbit/s VLANs.
Dark fibre
RENATER-4 also introduced a dark fibre infrastructure allowing to allocate dedicated 10Gbit/s "lambdas" for specific research projects. It also provides interconnection with GEANT-2 (see picture above), with increased capacity compared to GEANT-1 and dedicated interconnection for projects.
This new infrastructure is still under deployment (April 2006) and Grid'5000 sites are connected to it, one by one, as soon as it becomes available on the local POP. With the dark fibre infrastructures, Grid'5000 sites will see each others inside the same VLAN (10Gbit/s).
Sites connection

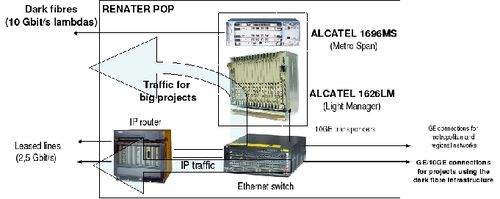

Inside the RENATER POPs, Grid'5000 sites are directly connected to the switches, by-passing the routers which are used for "standard" IP traffic (and Grid'500 sites that are still using the EoMPLS initial solution).
Metrology
You can find the metrology done on Grid5000 by Renater on the Network_interlink#Renater4 section.
(November, 20 2006) grid5000@renater.fr
Grid'5000 High Speed Networks
Grid'5000 features both Myrinet and Infiniband network infrastructures. See below high speed networks availability on Grid'5000 sites.
