Warning
|
Ceph is not maintained anymore.
|
Ceph is a distributed object store and file system designed to provide excellent performance, reliability and scalability. - See more at: http://ceph.com/
This pages gives information with regards to the managed Ceph service provided by Grid'5000.
About Ceph
The following documentation show the architecture:
https://docs.ceph.com/en/latest/architecture/
Grid'5000 Deployment
| Sites
|
Size
|
Configuration
|
Rados
|
RBD
|
CephFS
|
RadosGW
|
| Rennes
|
~ 9TB
|
16 OSDs on 4 nodes
|
|
|
|
|
| Nantes
|
~ 7TB
|
12 OSDs on 4 nodes
|
|
|
|
|
Configuration
Generate your key

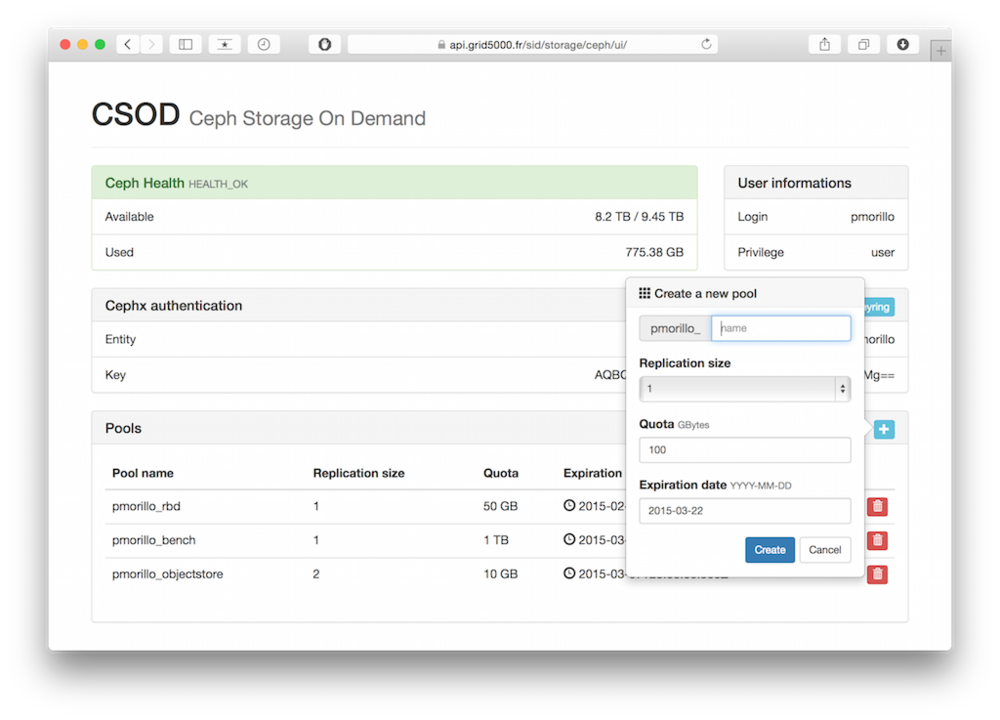

In order to access to the object store you will need a Cephx key. See : https://api.grid5000.fr/sid/sites/rennes/storage/ceph/ui/
Click on Generate a Cephx Key. A new key is generated.
Your key is now available from the frontends :
|
frontend:
|
|
[client.jdoe]
key = AQBwknVUwAPAIRAACddyuVTuP37M55s2aVtPrg==
Note : Replace jdoe by your login and rennes by nantes if your experiment is at Nantes.
Create/Update/Delete Ceph pools
Requirement : Generate your key
Manage your Ceph pools from the Grid'5000 Ceph frontend :
Currently each users are limited to 4 pools.
Replication size
- 1 : No replication (not secured, most efficient for write operations, not recommended : one disk crash and all datas are lost)
- n : One primary object + n-1 replicas (more security, less efficient for write operations)
You can edit the replication size by clicking on the replication size value. If the new value is greater than the old value, objects will automatically be replicated. Depending the amount of objects this operation will stress the Ceph cluster and take more or less time.
Quota
Quota is currently limited to 2TB per pools. You can change this quota at any time by clicking on the quota value, so prefer to use a small/realistic quota first.
Expiration date
The default expiration date is limited to 2 months. You can extend the expiration date at any time by clicking on the expiration date value.
Configure Ceph on clients
On the frontend or a node with standard environment
Create a ceph configuration file ~/.ceph/config :
[global]
mon host = ceph0,ceph1,ceph2
keyring = /home/<login>/.ceph/ceph.client.<login>.keyring
[global]
mon host = ceph0,ceph1,ceph2
keyring = /home/<login>/.ceph/ceph.client.<login>.keyring
Create a ceph keyring file ~/.ceph/ceph.client.$USER.keyring with your keyring :
|
|
frontend:
|
|
Note : Replace rennes by nantes if your are at Nantes.
export CEPH_CONF=~/.ceph/config
export CEPH_ARGS="--id $USER"
Note : maybe a good idea to export CEPH_CONF and CEPH_ARGS in your ~/.bashrc or ~/.zshrc file.
Test
$ ceph health
HEALTH_OK
$ ceph osd tree
# id weight type name up/down reweight
-1 8.608 root default
-6 8.608 datacenter rennes
-2 2.152 host ceph0
0 0.538 osd.0 up 1
1 0.538 osd.1 up 1
2 0.538 osd.2 up 1
3 0.538 osd.3 up 1
-3 2.152 host ceph1
4 0.538 osd.4 up 1
5 0.538 osd.5 up 1
6 0.538 osd.6 up 1
7 0.538 osd.7 up 1
-4 2.152 host ceph2
8 0.538 osd.8 up 1
9 0.538 osd.9 up 1
10 0.538 osd.10 up 1
11 0.538 osd.11 up 1
-5 2.152 host ceph3
12 0.538 osd.12 up 1
14 0.538 osd.14 up 1
15 0.538 osd.15 up 1
13 0.538 osd.13 up 1
Usage
Rados Object Store access
Requierement : Create a Ceph pool • Configure Ceph on client
From command line
Put an object into a pool
|
|
node:
|
rados --pool jdoe_objects put <objectname> <infile>
|
List objects of a pool
|
|
node:
|
rados --pool jdoe_objects ls
|
Get object from a pool
|
|
node:
|
rados --pool jdoe_objects get <objectname> <outfile>
|
Remove an object
|
|
node:
|
rados --pool jdoe_objects rm <objectname>
|
Usage informations
|
|
node:
|
rados --pool jdoe_objects df
|
pool name category KB objects clones degraded unfound rd rd KB wr wr KB
jdoe_objects - 1563027 2 0 0 0 0 0 628 2558455
total used 960300628 295991
total avail 7800655596
total space 9229804032
From your application (C/C++, Python, Java, Ruby, PHP...)
See : https://docs.ceph.com/en/latest/rados/api/librados-intro/?highlight=librados
Rados benchmarks
On a 1G ethernet client
|
|
frontend:
|
oarsub -I -p parapluie
|
Write (16 concurrent operations)
|
|
node:
|
rados --pool pmorillo_bench bench 60 write --no-cleanup
|
sec Cur ops started finished avg MB/s cur MB/s last lat avg lat
0 0 0 0 0 0 - 0
1 16 39 23 91.9669 92 0.91312 0.429879
2 16 70 54 107.973 124 0.679348 0.458774
3 16 96 80 106.644 104 0.117995 0.48914
4 16 126 110 109.98 120 0.207923 0.520003
5 16 154 138 110.38 112 0.370721 0.521431
6 16 180 164 109.314 104 0.293496 0.533345
...
Total time run: 60.321552
Total reads made: 1691
Read size: 4194304
Bandwidth (MB/sec): 112.132
Average Latency: 0.569955
Max latency: 4.06499
Min latency: 0.055024
Read
|
|
node:
|
rados --pool pmorillo_bench bench 60 seq
|
Maintaining 16 concurrent writes of 4194304 bytes for at least 60 seconds.
Object prefix: benchmark_data_parapluie-31.rennes.grid5000._25776
sec Cur ops started finished avg MB/s cur MB/s last lat avg lat
0 0 0 0 0 0 - 0
1 16 39 23 91.98 92 0.553582 0.434956
2 16 66 50 99.9807 108 0.471024 0.486303
3 16 95 79 105.314 116 0.654954 0.510875
4 16 124 108 107.981 116 0.522723 0.535851
5 16 151 135 107.981 108 0.244908 0.547624
6 16 180 164 109.314 116 0.239384 0.54942
...
Total time run: 60.478634
Total writes made: 1694
Write size: 4194304
Bandwidth (MB/sec): 112.040
Stddev Bandwidth: 15.9269
Max bandwidth (MB/sec): 124
Min bandwidth (MB/sec): 0
Average Latency: 0.571046
Stddev Latency: 0.354297
Max latency: 2.62603
Min latency: 0.165878
On a 10G ethernet client
|
|
frontend:
|
oarsub -I -p paranoia
|
Write (16 concurrent operations)
- Pool replication size : 1
|
|
node:
|
rados --pool pmorillo_bench bench 60 write --no-cleanup
|
Maintaining 16 concurrent writes of 4194304 bytes for at least 60 seconds.
Object prefix: benchmark_data_paranoia-3.rennes.grid5000.fr_5626
sec Cur ops started finished avg MB/s cur MB/s last lat avg lat
0 0 0 0 0 0 - 0
1 16 146 130 519.915 520 0.488794 0.103537
2 16 247 231 461.933 404 0.164705 0.126076
3 16 330 314 418.612 332 0.036563 0.148763
4 16 460 444 443.941 520 0.177378 0.141696
...
Total time run: 60.579488
Total writes made: 5965
Write size: 4194304
Bandwidth (MB/sec): 393.863
Stddev Bandwidth: 83.789
Max bandwidth (MB/sec): 520
Min bandwidth (MB/sec): 0
Average Latency: 0.162479
Stddev Latency: 0.195071
Max latency: 1.7959
Min latency: 0.033313
Read
|
|
node:
|
rados --pool pmorillo_bench bench 60 seq
|
sec Cur ops started finished avg MB/s cur MB/s last lat avg lat
0 0 0 0 0 0 - 0
1 16 288 272 1087.78 1088 0.028679 0.0556937
2 16 569 553 1105.82 1124 0.049299 0.0569641
3 16 850 834 1111.85 1124 0.024369 0.0566906
4 16 1127 1111 1110.86 1108 0.024855 0.0570628
5 16 1406 1390 1111.86 1116 0.182567 0.0568681
...
Total time run: 21.377795
Total reads made: 5965
Read size: 4194304
Bandwidth (MB/sec): 1116.111
Average Latency: 0.0573023
Max latency: 0.270447
Min latency: 0.011937
RBD (Rados Block Device)
Requierement : Create a Ceph pool • Configure Ceph on client
Create a Rados Block Device
|
|
frontend:
|
rbd --pool jdoe_rbd create <rbd_name> --size <MB>
|
|
|
Warning
|
Ceph server release is older than frontend. For the moment we have to force "--image-format=1". Which create the warning "rbd: image format 1 is deprecated"
|
|
|
frontend:
|
rbd --pool jdoe_rbd ls
|
|
|
frontend:
|
rbd --pool jdoe_rbd info <rbd_name>
|
Exemple :
$ rbd -p pmorillo_rbd create datas --size 4096
$ rbd -p pmorillo_rbd ls
datas
$ rbd -p pmorillo_rbd info datas
rbd image 'datas':
size 4096 MB in 1024 objects
order 22 (4096 kB objects)
block_name_prefix: rb.0.604e.238e1f29
format: 1
Note : rbd -p pmorillo_rbd info datas is equivalent to rbd info pmorillo_rbd/datas
Create filesystem and mount RBD
|
|
frontend:
|
oarsub -I -t deploy
|
|
|
frontend:
|
kadeploy3 -e debian11-x64-base -f $OAR_NODEFILE -k
|
|
|
frontend:
|
ssh root@deployed_node
|
|
|
node:
|
apt install ceph
|
|
|
node:
|
modprobe rbd
|
|
|
node:
|
modinfo rbd
|
Create Ceph configuration file /etc/ceph/ceph.conf :
[global]
mon host = ceph0,ceph1,ceph2
Get CephX key from the frontend :
frennes $ curl -k https://api.grid5000.fr/sid/sites/rennes/storage/ceph/auths/$USER.keyring | ssh root@deployed_node "cat - > /etc/ceph/ceph.client.$USER.keyring"
|
|
node:
|
rbd --id jdoe --pool jdoe_pool map <rbd_name>
|
Exemple :
rbd --id pmorillo map pmorillo_rbd/datas
|
|
node:
|
rbd --id jdoe --pool jdoe_pool showmapped
|
Exemple :
rbd --id pmorillo showmapped
id pool image snap device
0 pmorillo_rbd datas - /dev/rbd0
|
|
node:
|
mkfs.ext4 /dev/rbd0
|
|
|
node:
|
mkdir /mnt/rbd
|
|
|
node:
|
mount /dev/rbd0 /mnt/rbd
|
|
|
node:
|
df -h
|
Filesystem Size Used Avail Use% Mounted on
/dev/sda3 15G 1.6G 13G 11% /
...
/dev/sda5 525G 70M 498G 1% /tmp
/dev/rbd0 3.9G 8.0M 3.6G 1% /mnt/rbd
Note : To map rbd at boot time, use /etc/ceph/rbdmap file :
# RbdDevice Parameters
#poolname/imagename id=client,keyring=/etc/ceph/ceph.client.keyring
Resize, snapshots, copy, etc...
See :
QEMU/RBD
Requierement : Create a Ceph pool • Configure Ceph on client
Convert a qcow2 file into RBD
|
|
frennes:
|
oarsub -I
|
|
|
node:
|
qemu-img convert -f qcow2 -O raw /grid5000/virt-images/debian11-x64-base.qcow2 rbd:pool_name/debian11:id=jdoe
|
|
|
node:
|
rbd --id jdoe --pool pool_name ls
|
debian11
Start KVM virtual machine from a Rados Block Device
|
|
node:
|
screen kvm -m 1024 -drive format=raw,file=rbd:pool_name/debian11:id=jdoe -nographic
|
