Grenoble:Network
See also: Hardware description for Grenoble

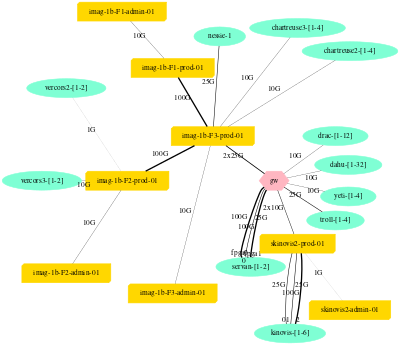

Overview of Ethernet network topology
Network devices models
- gw: Dell S5296F-ON
- imag-1b-F1-prod-01: Aruba JL719C 8360-48Y6C v2 Switch
- imag-1b-F2-prod-01: Aruba JL719C 8360-48Y6C v2 Switch
- imag-1b-F3-prod-01: Aruba JL719C 8360-48Y6C v2 Switch
More details (including address ranges) are available from the Grid5000:Network page.
HPC Networks
Infiniband 100G network
An Infiniband 100G network interconnects nodes from the drac cluster, beside the Ethernet network. That Infiniband network is composed of a single switch.
The subnet manager of this Infiniband network is provided by the switch.
- Switch: Mellanox SB7700 IB EDR / 100G
- Host adapter: Mellanox MT27700 [ConnectX-4] dual-port
- Each of the 12 drac nodes has two 100G connections to the switch
Omni-Path 100G network
The dahu, yeti and troll nodes are connected to a single Omni-Path switch (Intel Omni-Path 100Gbps), beside the Ethernet network.
The fabric manager of this Omni-Path network is provided by one of the Grid'5000 service machines (digwatt).
- Switch: Intel® Omni-Path Edge Switch 100 Series/H1048-OPF
- Host adapter: Intel® Omni-Path Host Fabric Interface Adapter 100 Series 1 Port PCIe x16
- Each of the 44 dahu/yeti/troll nodes has one 100G connection to the switch
(since 2021-03-01, this Omni-Path network interconnect is not any more shared between both the Grid'5000 Grenoble nodes and the nodes of the HPC Center of Université Grenoble Alpes (Gricad mésocentre), see the history of this page for information about the previous configuration).

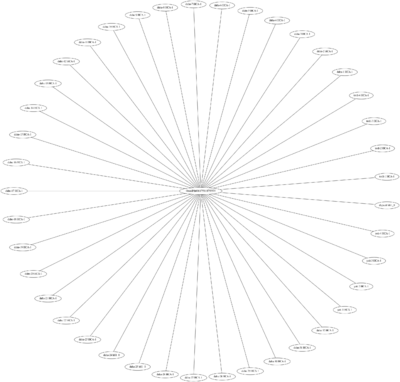

Topology, generated from opareports -o topology:
NB: OPA (Omni-Path Architecture) is currently not supported on Debian 12 environment.
IP Range
- Ethernet: 172.16.16.0/20
- HPC (Infiniband/Omni-Path): 172.18.16.0/20 (but Infiniband and Omni-path IPs are not reachable directly from one another)
- Virtual: 10.132.0.0/14
