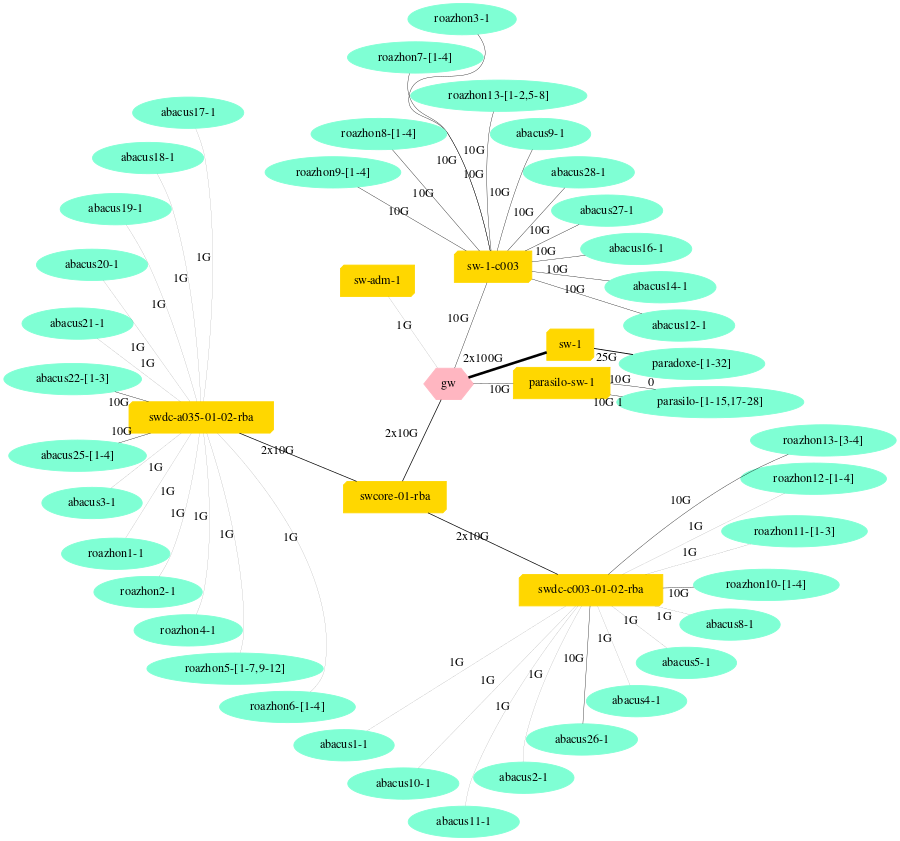

Overview of Ethernet network topology

Network devices models

• bigdata-sw: Force10 S4810
• c6509: Cisco WS-C6509-E
• gw: Aruba 8325-48Y8C
• parasilo-sw-1: Nexus 56128P
• paravance-sw-1: Nexus 56128P
• paravance-sw-2: Nexus 56128P
• sw-1-c003: S4128F-ON
• sw-1: Aruba 8325-48Y8C
• sw-adm-1: Aruba 6300M
• swcore-01-rba: WS-C6509-E
• swdc-a035-01-02-rba: Nexus 5596
• swdc-c003-01-02-rba: Nexus 5596

More details (including address ranges) are available from the Grid5000:Network page.

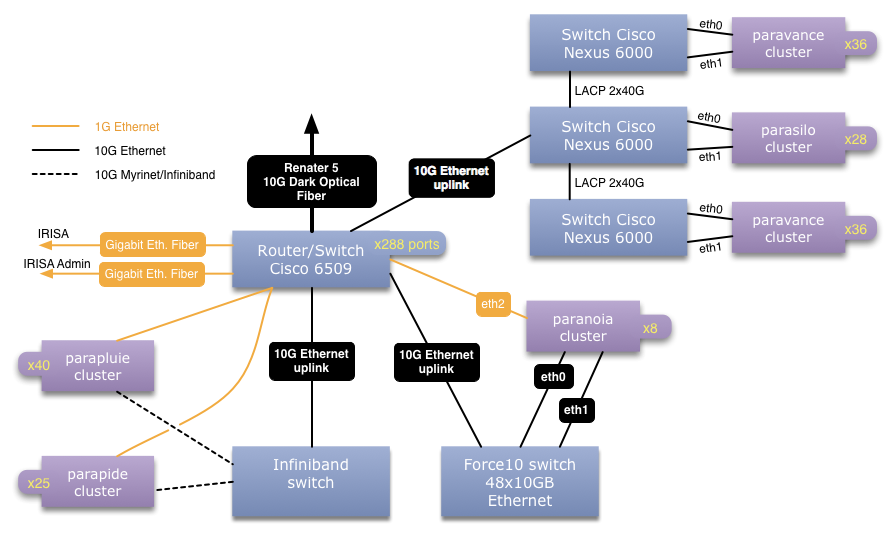

More details about the network topology (deprecated)

• Our network connectivity is provided by a single switch: a Cisco 6509. It provides us with a gigabit ethernet connection to each cluster node, a 10G uplink to Renater and a Gigabit uplink to the IRISA Network (used for DNS/NTP access, and connection to satellite sites).

Node names

• Compute nodes must be reserved before use with OAR on frontend.rennes.grid5000.fr

Cluster	Compute Nodes Alias	Primary interface	Secondary interface (kavlan only)	Third interface (kavlan only)
Dell Poweredge R630	paravance-{1..72}.rennes.grid5000.fr	paravance-{1..72}-eth0.rennes.grid5000.fr	paravance-{1..72}-eth1-kavlan-*.rennes.grid5000.fr
Dell Poweredge R630	parasilo-{1..28}.rennes.grid5000.fr	parasilo-{1..28}-eth0.rennes.grid5000.fr	parasilo-{1..28}-eth1-kavlan-*.rennes.grid5000.fr
Dell Poweredge C6220	paranoia-{1..8}.rennes.grid5000.fr	paranoia-{1..8}-eth0.rennes.grid5000.fr	paranoia-{1..8}-eth1-kavlan-*.rennes.grid5000.fr	paranoia-{1..8}-eth2-kavlan-*.rennes.grid5000.fr
HP Proliant	parapluie-{1..40}.rennes.grid5000.fr	parapluie-{1..40}-eth1.rennes.grid5000.fr
Sun Microsystem	parapide-{1..25}.rennes.grid5000.fr	parapide-{1..25}-eth0.rennes.grid5000.fr

High Performance Networks

20G Infiniband 4x QDR (parapide, parapluie)

Nodes

• parapide-1 to parapide-25 have a 20G Infiniband 4x DDR (ConnectX) card.
• parapluie-1 to parapluie-40 have a 20G Infiniband 4x DDR (ConnectX) card.

• sources path : /usr/local/src/OFED-1.5

• OAR property : ib=MT25418.
• IP over IB addressing : parapide-[1..25]-ib0.rennes.grid5000.fr (192.168.200.221 à 192.168.200.245)
• IP over IB addressing : parapluie-[1..40]-ib0.rennes.grid5000.fr (192.168.201.1 à 192.168.201.40)

Voltaire Switch ISR2012-056c

• Gateway : 192.168.200.1
• Hardware :

L:ISR2012-056c# version show
version: 5.4.0
date:    Mar 19 2009 02:47:23 PM
build Id:958

L:ISR2012-056c# front show
Device: HW Version: B02; Serial Number: CN2309001330
sFB-2012 #1: Temperature: 32C; HW Version: A05; Serial Number: CN1409000632
sFB-2012 #2: Temperature: 31C; HW Version: A05; Serial Number: CN1409000631
sFB-2012 #3: Temperature: 30C; HW Version: A05; Serial Number: CN1409000634
sFB-2012 #4: Temperature: 34C; HW Version: A05; Serial Number: CN1409000630
sMB: Temperature: 28C; HW Version: E01; Serial Number: CN2309001258
sFU-8: Temperature: 24C
sFU-4: Temperature: 22C

L:ISR2012-056c# rear show
sLB-2024 #1: Temperature: 32C; HW Version: A03; Serial Number: CN1409000554
sRB-20210G #2: Temperature: 35C; HW Version: B00; Serial Number: CN2709001005
sLB-2024 #3: Temperature: 28C; HW Version: A04; Serial Number: CN0610001939
